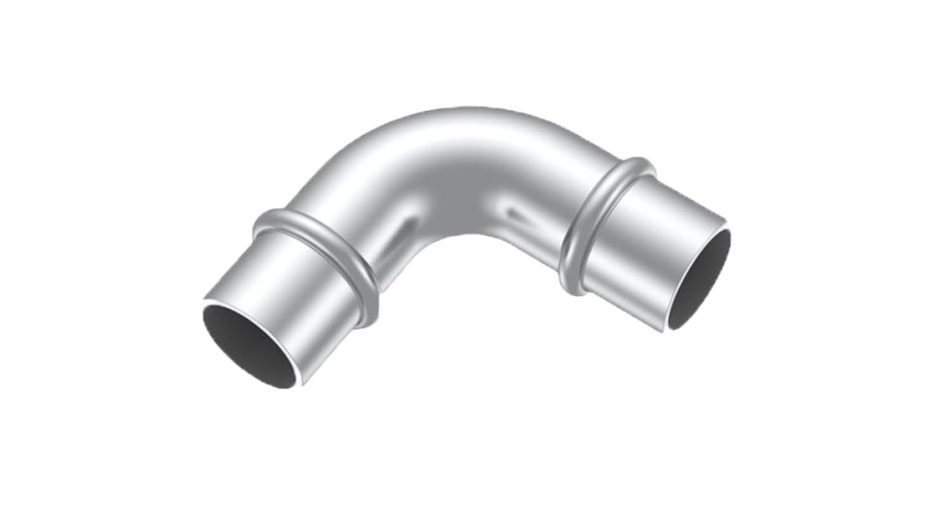

Stainless Steel 90 degree elbow

• Material: 304 Stainless steel/316L Stainless steel

• Working Pressure: 1.6MPA

• Working Medium: Cold and hot water, direct drinking water, industrial fluid, gas

• Working Temperature: -30℃-95℃

INQUIRY

Product Parameters

S.N	Nominal Diameter(mm)	W(mm)	H(mm)
LS11 0300	DN20	60.2	51
LS22 0300	DN25	65.7	75
LS44 0300	DN40	96.9	80
LS55 0300	DN50	106.9	105
LS66 0300	DN65	142.6	115
LS77 0300	DN80	161.2	125
LS88 0300	DN100	179.7	133
LS99 0300	DN125	201.3	133
LSCC 0300	DN148	237.9	160
LSBB 0300	DN200	296.3	187

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd., founded in August 2019, is an innovative company specializing in R&D, production, sales, and installation of fluid transport products. Its offerings include Upipe (aluminum alloy pipes/fittings) and Liq-pipe, known for safety, reliability, corrosion resistance, and eco-friendliness.

Serving industrial, civil, and military sectors, the company has domestic branches and agents, exporting to the U.S., India, Malaysia, the Philippines, Vietnam, Thailand, the UK, Portugal, Ethiopia, South Africa, Saudi Arabia, Korea and more. It holds multiple patents and certifications (ISO 9001/14001, CE, high-tech enterprise), ensuring high-quality fluid transport solutions.
