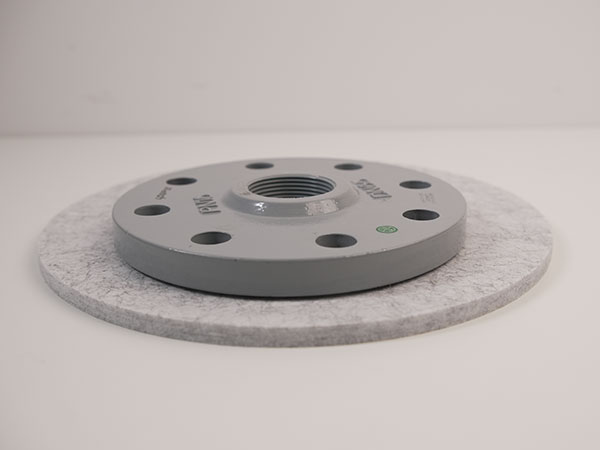

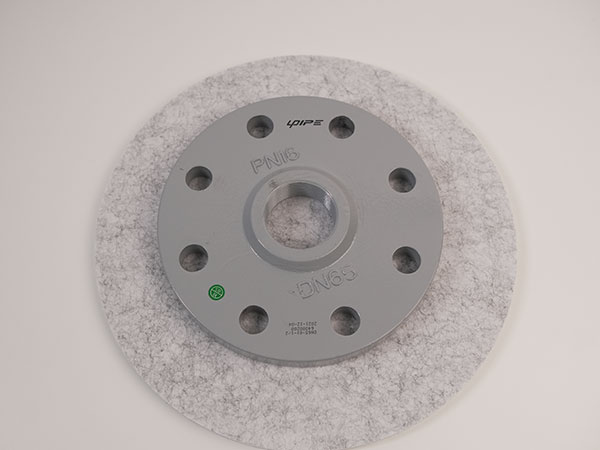

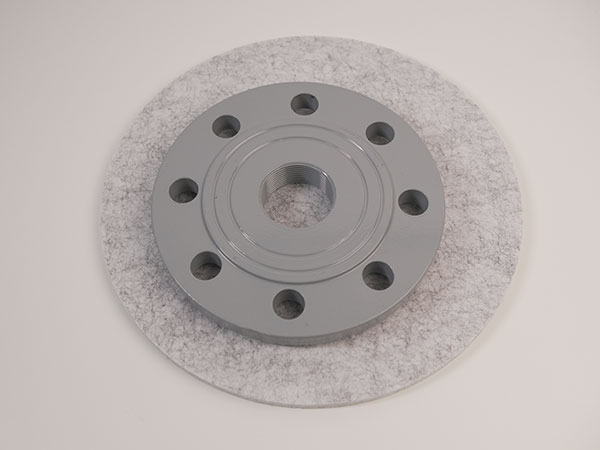

Female Flange

• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.)

• Working Pressure: 16 bar

• Working Temperature： -20℃~ +80℃/-60℃~ +180℃

• Material Features：Spraying aluminum, stainless steel, engineering plastics

INQUIRY

Product Parameters

Female Flange

S.N	Nominal Diameter(mm)	D1(mm)	D2(mm)
42 0802 00	DN40-G1＂	110	150
44 0802 00	DN40-G1 1/2＂	110	150
52 0802 00	DN50-G1＂	125	165
54 0802 00	DN50-G1 1/2＂	125	165
62 0802 00	DN65-G1＂	145	185
64 0802 00	DN65-G1 1/2＂	145	185
72 0802 00	DN80-G1＂	160	200
74 0802 00	DN80-G1 1/2＂	160	200
75 0802 00	DN80-G2＂	160	200
82 0802 00	DN100-G1＂	180	220
84 0802 00	DN100-G1 1/2＂	180	220
85 0802 00	DN100-G2＂	180	220
92 0802 00	DN125-G1＂	210	250
94 0802 00	DN125-G1 1/2＂	210	250
95 0802 00	DN125-G2＂	210	250
96 0802 00	DN125-G2 1/2＂	210	250

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd., founded in August 2019, is an innovative company specializing in R&D, production, sales, and installation of fluid transport products. Its offerings include Upipe (aluminum alloy pipes/fittings) and Liq-pipe, known for safety, reliability, corrosion resistance, and eco-friendliness.

Serving industrial, civil, and military sectors, the company has domestic branches and agents, exporting to the U.S., India, Malaysia, the Philippines, Vietnam, Thailand, the UK, Portugal, Ethiopia, South Africa, Saudi Arabia, Korea and more. It holds multiple patents and certifications (ISO 9001/14001, CE, high-tech enterprise), ensuring high-quality fluid transport solutions.

System advantages

Safety Reliable
Fast Convenient
Energy Saving
Anti-corrosion Clean

Ten-year quality assurance

UPIPE series products are guaranteed to be replaced or repaired free of charge within ten years after installation, testing and acceptance.
