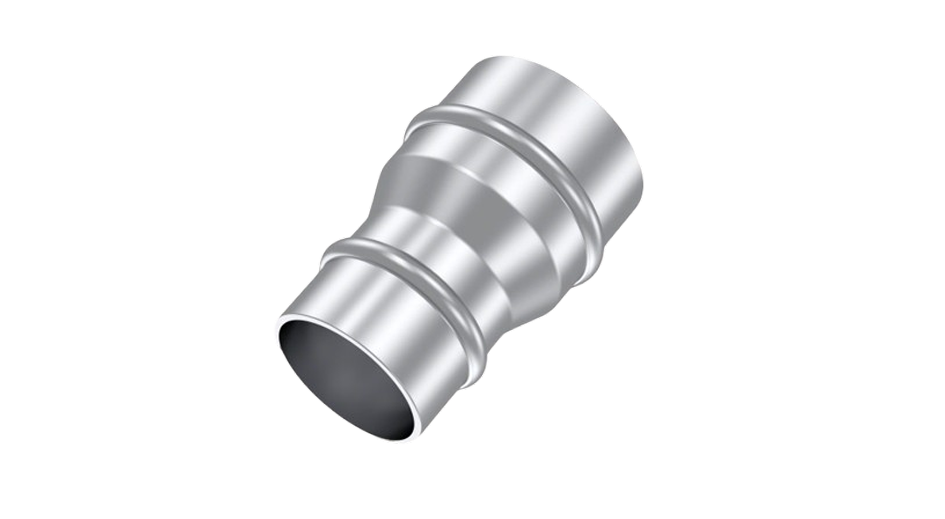

Stainless Steel Reducing Pipe to Pipe Connector

• Material: 304 Stainless steel/316L Stainless steel

• Working Pressure: 1.6MPA

• Working Medium: Cold and hot water, direct drinking water, industrial fluid, gas

• Working Temperature: -30℃-95℃

INQUIRY

Product Parameters

S.N	Nominal Diameter(mm)	W(mm)	H₁(mm)	H₂(mm)
LS21 0201	DN25-DN20	50.5	20	25
LS42 0201	DN40-DN25	50.5	25.2	40.2
LS54 0201	DN50-DN40	118	50.2	40.2
LS64 0201	DN65-DN40	127.5	67.6	40.2
LS65 0201	DN65-DN50	127.5	67.6	50.2
LS75 0201	DN80-DN50	127.5	85	50.2
LS76 0201	DN80-DN65	135	85	67.6
LS86 0201	DN100-DN65	135	102	67.6
LS87 0201	DN100-DN80	135	102	85
LS97 0201	DN125-DN80	135	125.2	85
LS98 0201	DN125-DN100	135	125.2	102
LSC8 0201	DN148-DN100	145	148.2	102
LSC9 0201	DN148-DN125	145	148.2	125.2
LSB9 0201	DN200-DN125	155	205	125.2
LSBC 0201	DN200-DN148	155	205	148.2
