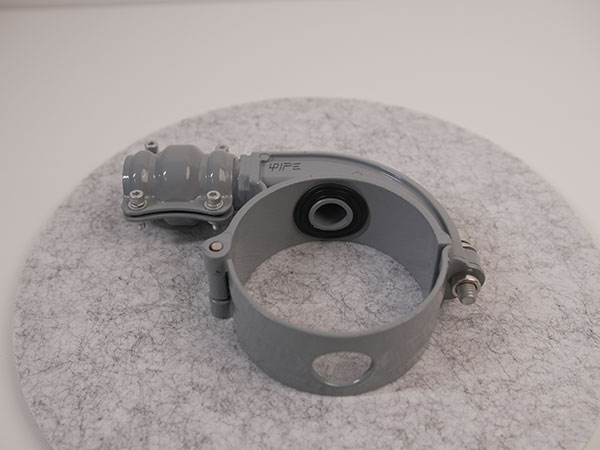

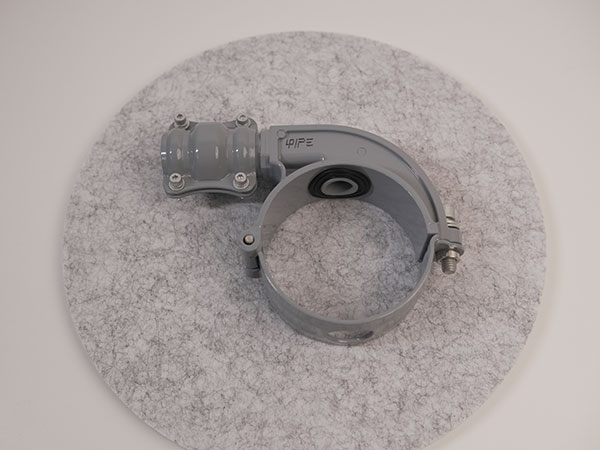

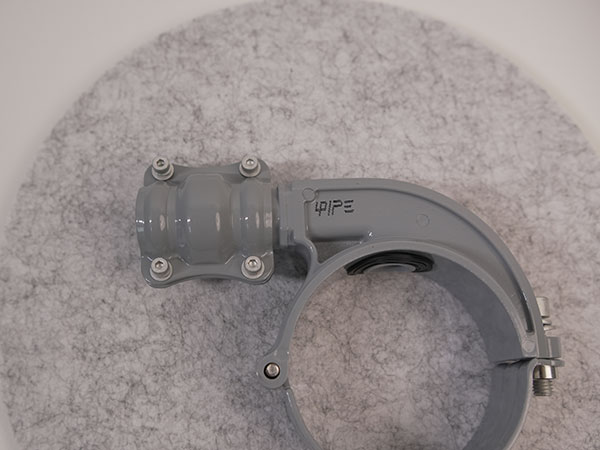

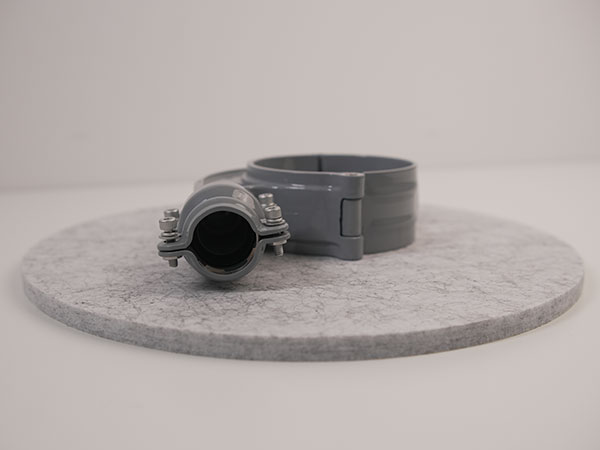

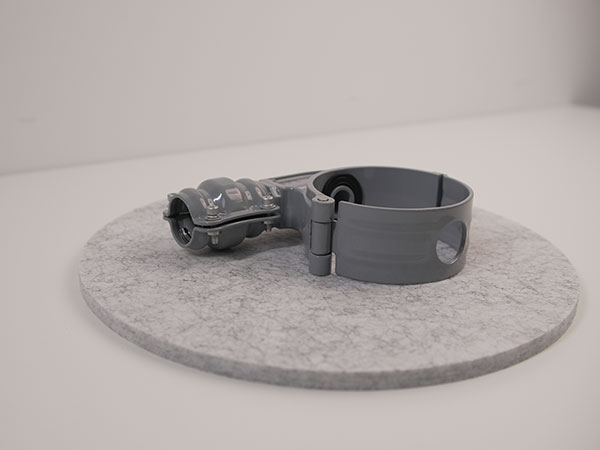

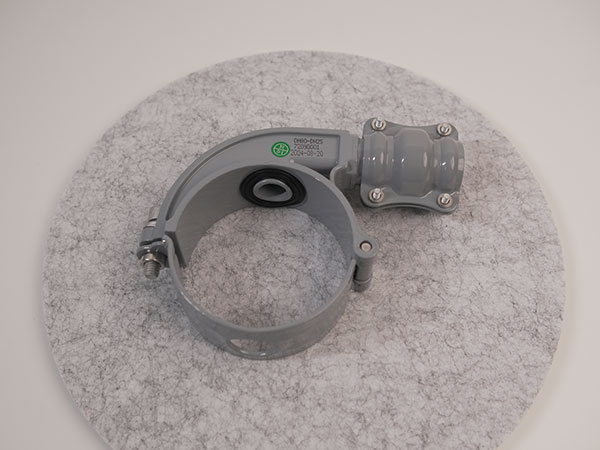

90° Quick Drop (Assembled)

• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.)

• Working Pressure: 16 bar

• Working Temperature： -20℃~ +80℃/-60℃~ +180℃

• Material Features：Spraying aluminum, stainless steel, engineering plastics

INQUIRY

Product Parameters

90° Quick Drop (Assembled)

S.N	Nominal Diameter(mm)	W(mm)	H(mm)
41 0900 01	DN40-DN20	88	139
42 0900 01	DN40-DN25	90	141
51 0900 01	DN50-DN20	98	145
52 0900 01	DN50-DN25	99	148
61 0900 01	DN65-DN20	113	152
62 0900 01	DN65-DN25	117	154
71 0900 01	DN80-DN20	131	165
72 0900 01	DN80-DN25	133	167
81 0900 01	DN100-DN20	149	178
82 0900 01	DN100-DN25	150	180
91 0900 01	DN125-DN20	172	209
