Elbow-Suzhou Jieyou Fluid Technology Co., Ltd.

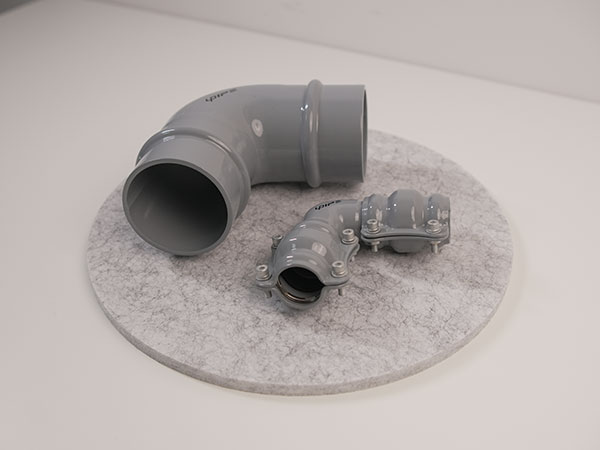

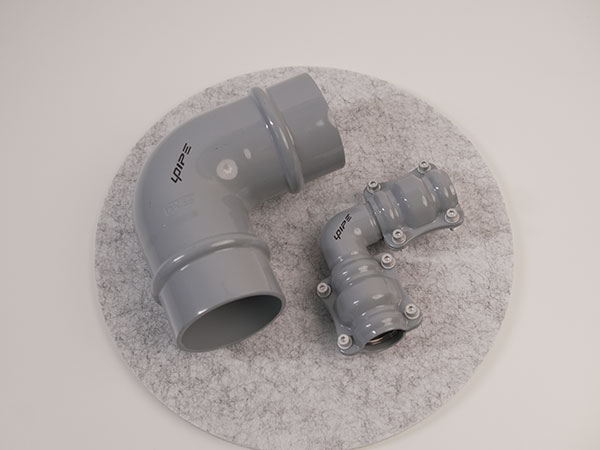

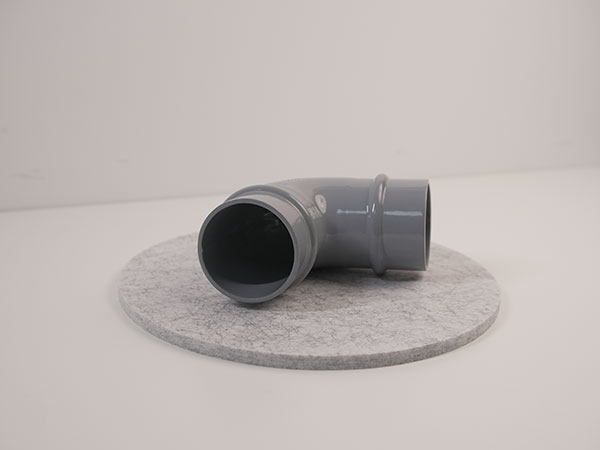

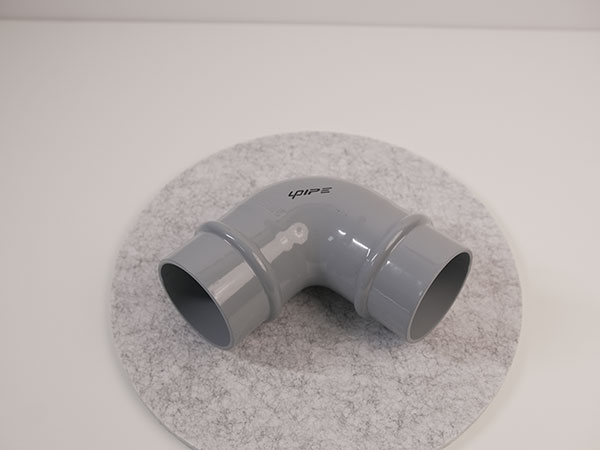

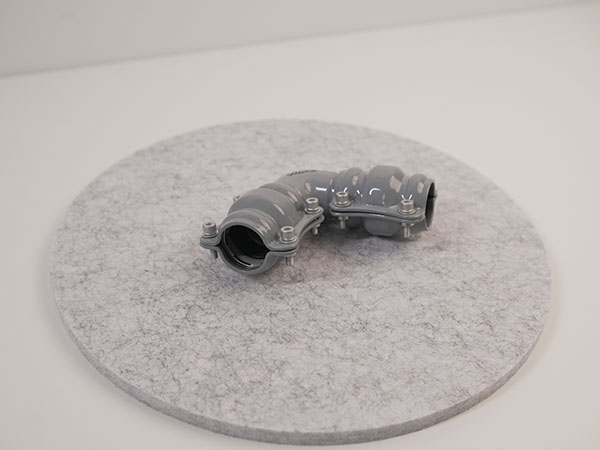

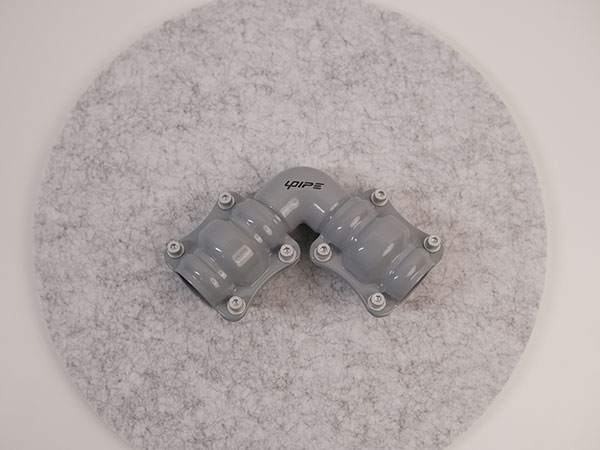

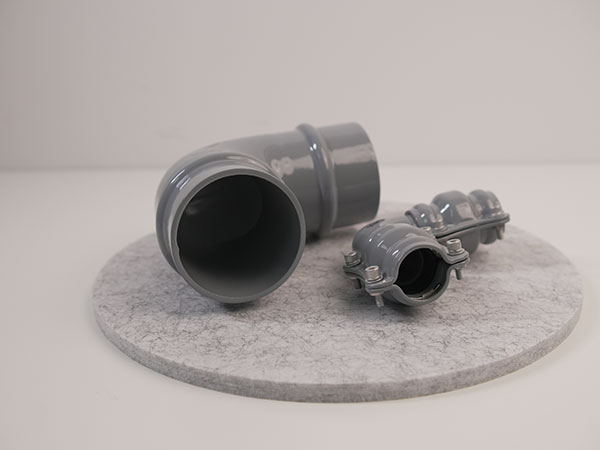

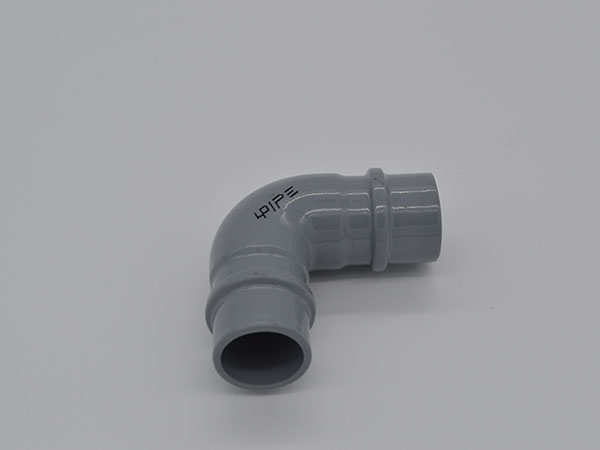

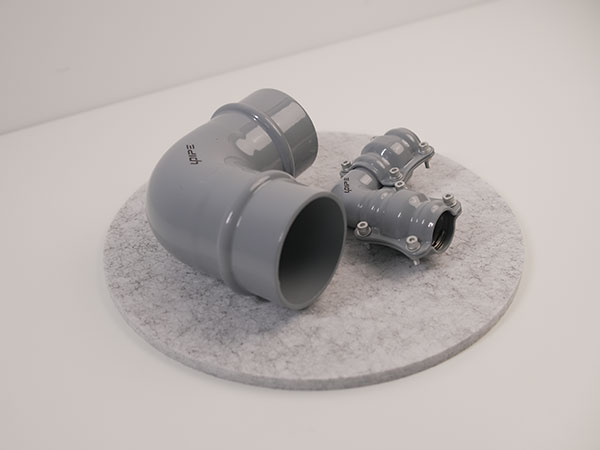

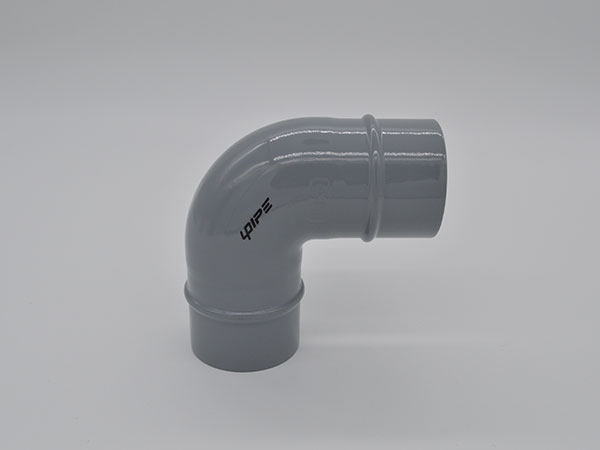

90° Elbow

• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.)

• Working Pressure: 16 bar

• Working Temperature： -20℃~ +80℃/-60℃~ +180℃

• Material Features：Spraying aluminum, stainless steel, engineering plastics

INQUIRY

Product Parameters

S.N	Nominal Diameter	W(mm)	H(mm)
11 0300 01	DN20(Assembled)	99.5	99.5
22 0300 01	DN25(Assembled)	105	105
11 0300 00	DN20	60.1	60.1
22 0300 00	DN25	65.7	65.7
44 0300 00	DN40	97	97
55 0300 00	DN50	107	107
66 0300 00	DN65	142.6	142.6
77 0300 00	DN80	161.2	161.2
88 0300 00	DN100	179.7	179.7
99 0300 00	DN125	201.3	201.3
CC 0300 00	DN148	237.9	237.9
BB 0300 00	DN200	295	295

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd., founded in August 2019, is an innovative company specializing in R&D, production, sales, and installation of fluid transport products. Its offerings include Upipe (aluminum alloy pipes/fittings) and Liq-pipe, known for safety, reliability, corrosion resistance, and eco-friendliness.

Serving industrial, civil, and military sectors, the company has domestic branches and agents, exporting to the U.S., India, Malaysia, the Philippines, Vietnam, Thailand, the UK, Portugal, Ethiopia, South Africa, Saudi Arabia, Korea and more. It holds multiple patents and certifications (ISO 9001/14001, CE, high-tech enterprise), ensuring high-quality fluid transport solutions.

System advantages

Safety Reliable
Fast Convenient
Energy Saving
Anti-corrosion Clean

Ten-year quality assurance

UPIPE series products are guaranteed to be replaced or repaired free of charge within ten years after installation, testing and acceptance.
