As a high quality compressed air system solutions supplier, UPIPE will share the manufacturing process of high pressure aluminum compressed air pipe for sale.

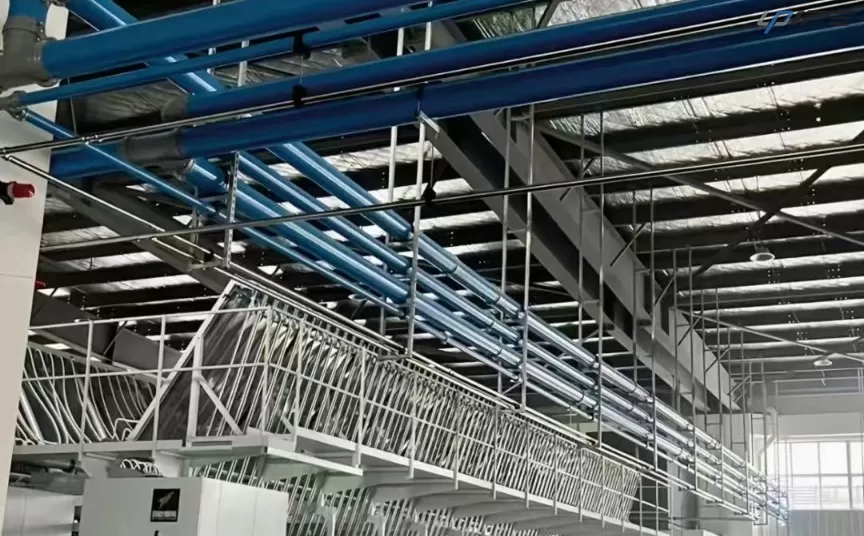

In the evolving landscape of industrial infrastructure, aluminum compressed air pipes have emerged as a reliable, lightweight, and durable solution for air transmission systems. Their application spans across construction, industrial automation, and medical sectors. In this blog post, as a high quality compressed air system solutions supplier, UPIPE will share the manufacturing process of high pressure aluminum compressed air pipe for sale.
Overview: Why Choose Aluminum Compressed Air Pipe?
High pressure aluminum compressed air pipes are engineered to provide optimal performance under demanding conditions. Designed to carry compressed air, vacuum, or inert gases such as helium, nitrogen, and argon, these pipes operate at working pressures up to 16 bar and temperatures ranging from -20°C to +80°C, or in advanced designs, from -60°C to +180°C. Their unique combination of lightweight structure, corrosion resistance, and high mechanical strength makes them ideal for diverse operational environments, including those exposed to UV radiation, mechanical vibration, and thermal fluctuation.
Core Materials and Their Performance Characteristics
The fundamental material used in these pipes is high-strength aluminum alloy, chosen for its favorable strength-to-weight ratio, corrosion resistance, and processability.
* Aluminum Alloy Base: With a density only about one-third of steel, aluminum ensures reduced weight without sacrificing durability. The alloy composition is selected to enhance hardness and resist internal pressure.
* Surface Treatments: To further improve resistance to corrosion and wear, the pipes are often finished with anodizing, powder coating, or spraying techniques using protective materials like epoxy resins or polyurethane.
* Composite Additions: In some designs, engineering plastics and stainless steel components are integrated for connection systems or special fittings, enhancing temperature and chemical resistance.
Aluminum Compressed Air Pipe Manufacturing Process
1. Raw Material Preparation
The process begins with the selection of high-quality aluminum billets, typically 6061 or 6063 grades, which possess excellent machinability and corrosion resistance. These billets are preheated to ensure uniform temperature distribution, reducing the risk of internal stress during extrusion.
2. Extrusion Molding
The heated billet is forced through a precision-designed die to form hollow pipe profiles. This extrusion process not only defines the pipe's shape and internal diameter but also aligns the grain structure along the axis of the pipe, improving tensile strength.
* Hot extrusion is commonly used to ensure optimal material flow.
* The extrusion speed and temperature are strictly controlled to avoid surface defects or dimensional inconsistencies.
3. Straightening and Cutting
Once extruded, the aluminum profiles are cooled and passed through a straightening machine to eliminate any curvature. Pipes are then cut to the required length using automated cutting tools with high dimensional precision.
4. Thermal Treatment
The cut pipes undergo solution heat treatment and artificial aging processes to enhance their mechanical properties. This T6 temper treatment improves hardness and ensures long-term pressure retention.
5. Surface Finishing
To protect against environmental degradation, the pipes undergo one or more surface finishing processes:
* Anodizing: An electrochemical process that thickens the natural oxide layer on aluminum, improving corrosion and abrasion resistance.
* Powder Coating: Applied for additional chemical resistance and color coding.
* Spray Coating: Using materials like epoxy resin to provide a robust outer protective layer.
These treatments not only improve aesthetics but also extend the pipe's service life in corrosive or outdoor conditions.
6. Inner Wall Cleaning and Drying
To meet the functional requirement of transmitting dry, oil-free, and impurity-free air, the inner walls of the pipes are cleaned using automated brushing and vacuum systems. This ensures the interior is smooth and free from any residual oils, metal shavings, or moisture.
Quality Control and Inspection
Strict quality control protocols are implemented at every stage to ensure reliability and performance:
* Dimensional Accuracy: Pipe diameters and wall thickness are measured using laser scanning tools.
* Pressure Testing: Random samples undergo hydrostatic or pneumatic pressure testing, exceeding the working pressure to ensure safety margins.
* Surface Integrity: Coatings and surface finishes are tested for adhesion, thickness, and corrosion resistance.
* Non-destructive Testing (NDT): Ultrasonic or eddy current inspections are employed to detect internal defects or cracks.
Assembly and Integration Components
Post-manufacturing, the pipes are equipped with modular components to facilitate system integration:
* Quick-Fit Connectors: Made from engineering plastics or stainless steel, designed for leak-proof performance.
* Sealing Rings: Heat and oil-resistant materials are used for long-term sealing reliability.
* Mounting Systems: Specialized brackets are included to resist vibration and maintain alignment in complex installations.
Environmental and Functional Adaptability
One of the defining features of aluminum compressed air pipes is their versatile application across diverse environments:
* UV and Weather Resistance: With appropriate coatings, the pipes perform reliably in outdoor settings.
* Corrosive and Oil-Contaminated Atmospheres: Aluminum alloys paired with anodized surfaces resist damage in environments affected by compressor oils or mild acids.
* Thermal Shock Tolerance: Pipes maintain structural integrity under temperature fluctuations ranging from sub-zero to near-boiling conditions.
Conclusion
The manufacturing of high pressure aluminum compressed air pipes is a complex, precision-driven process combining advanced metallurgy, thermal processing, and surface engineering. Their excellent performance under high pressure, resistance to corrosion and temperature variation, and long service life make them an indispensable component in modern compressed air systems. With rigorous quality control and innovative design, these pipes not only ensure safe and efficient air transmission but also contribute to the overall reliability and energy efficiency of industrial infrastructure.
