Tee-Suzhou Jieyou Fluid Technology Co., Ltd.

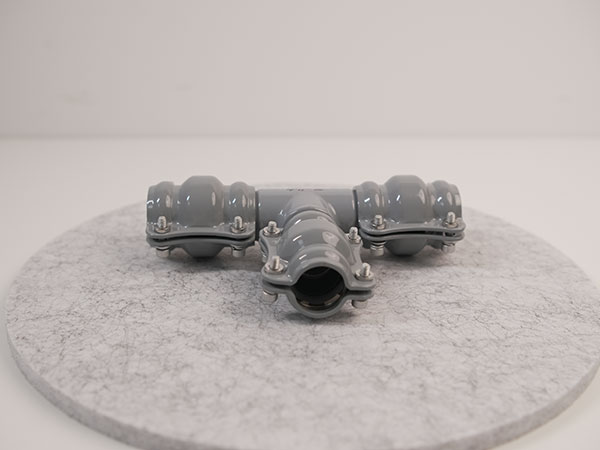

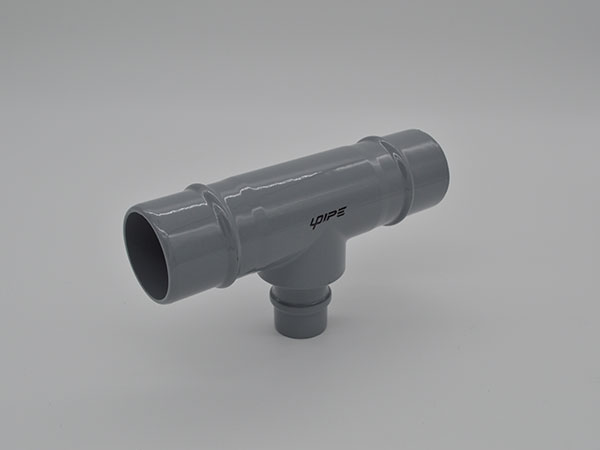

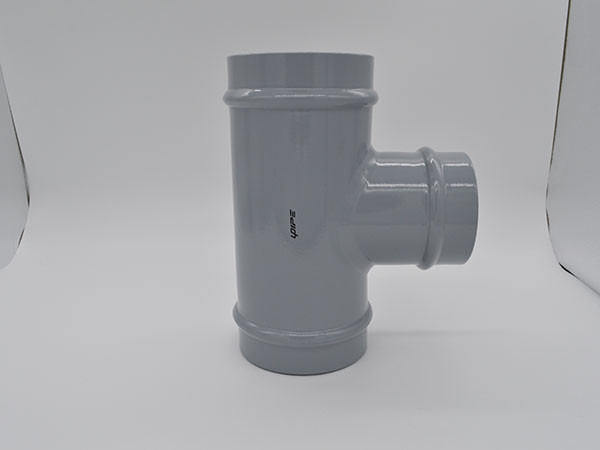

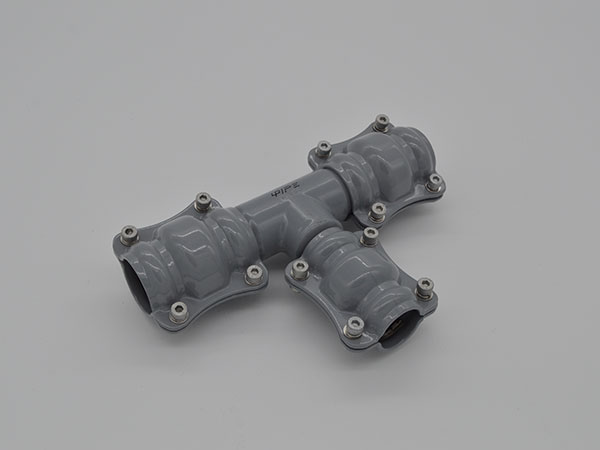

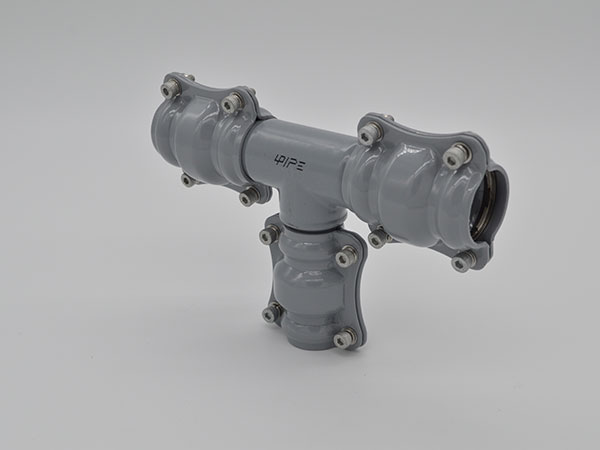

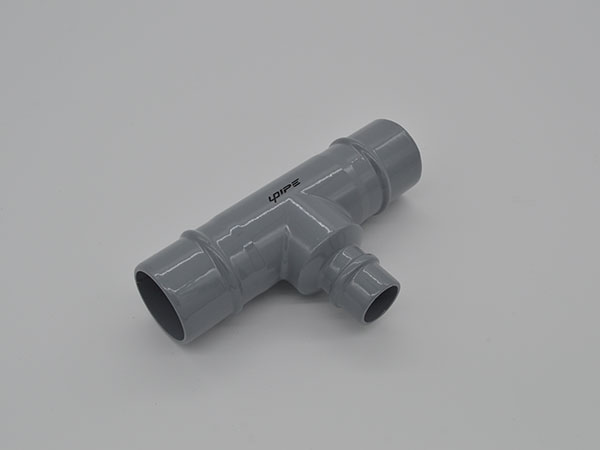

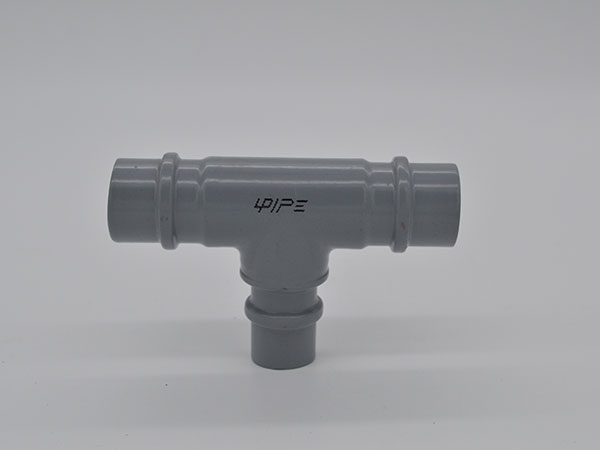

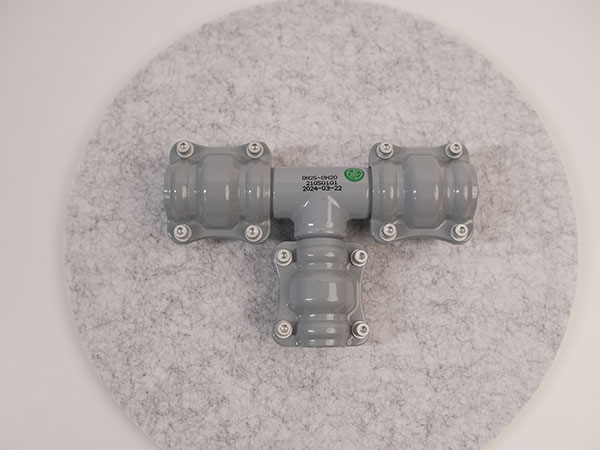

Reducing Tee

• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.)

• Working Pressure: 16 bar

• Working Temperature： -20℃~ +80℃/-60℃~ +180℃

• Material Features：Spraying aluminum, stainless steel, engineering plastics

INQUIRY

Product Parameters

Reducing Tee

S.N	Nominal Diameter(mm)	W(mm)	H(mm)
21 0501 01	DN25-DN20(Assembled)	157	105
21 0501 00	DN25-DN20	157	105
42 0501 00	DN40-DN25	148.2	83
54 0501 00	DN50-DN40	158	107
64 0501 00	DN65-DN40	175	137.6
65 0501 00	DN65-DN50	210	135.6
74 0501 00	DN80-DN40	175	156.2
75 0501 00	DN80-DN50	175	156.2
76 0501 00	DN80-DN65	230	161.2
84 0501 00	DN100-DN40	176	174.7
86 0501 00	DN100-DN65	215	181.7
87 0501 00	DN100-DN80	250	179.7
96 0501 00	DN125-DN65	217	204.8
97 0501 00	DN125-DN80	230	206.8
98 0501 00	DN125-DN100	274	203.3
C6 0501 00	DN148-DN65	240	232.4
C7 0501 00	DN148-DN80	260	232.4
C8 0501 00	DN148-DN100	280	232.4
C9 0501 00	DN148-DN125	320	237.9
B4 0501 00	DN200-DN40	200	286.3
B5 0501 00	DN200-DN50	220	293.3
B6 0501 00	DN200-DN65	220	293.3
B7 0501 00	DN200-DN80	235	293.3
B8 0501 00	DN200-DN100	250	293.3
B9 0501 00	DN200-DN125	280	293.3
BA 050100	DN200-DN148	330	296.6

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd., founded in August 2019, is an innovative company specializing in R&D, production, sales, and installation of fluid transport products. Its offerings include Upipe (aluminum alloy pipes/fittings) and Liq-pipe, known for safety, reliability, corrosion resistance, and eco-friendliness.

Serving industrial, civil, and military sectors, the company has domestic branches and agents, exporting to the U.S., India, Malaysia, the Philippines, Vietnam, Thailand, the UK, Portugal, Ethiopia, South Africa, Saudi Arabia, Korea and more. It holds multiple patents and certifications (ISO 9001/14001, CE, high-tech enterprise), ensuring high-quality fluid transport solutions.

System advantages

Safety Reliable
Fast Convenient
Energy Saving
Anti-corrosion Clean

Ten-year quality assurance

UPIPE series products are guaranteed to be replaced or repaired free of charge within ten years after installation, testing and acceptance.

The exclusion clause does not cover problems or damage caused by the following reasons, including but not limited to the following points:

The product or component is no longer covered by the company's warranty period, unless both parties have signed an extended warranty agreement.
Faults or damage caused by exceeding our specified installation and usage guidelines, failing to follow product manuals or maintenance documentation, operating outside the product's intended environment, or incorrect installation, storage, or use (e.g., excessively high or low installation temperatures, corrosive environments, external impacts) are not covered.
Faults or damage caused by exceeding our specified installation and usage guidelines, failing to follow product manuals or maintenance documentation, operating outside the product's intended environment, or incorrect installation, storage, or use (e.g., excessively high or low installation temperatures, corrosive environments, external impacts) are not covered.
