The layout of aluminum alloy compressed air piping plays a critical role in ensuring the efficiency, reliability, and safety of an industrial compressed air system. A well-designed piping network not only minimizes energy losses but also reduces maintenance costs, improves air quality, and prolongs equipment life. Aluminum alloy piping, with its combination of lightweight structure, corrosion resistance, and modular assembly features, has become the preferred choice for modern manufacturing facilities, workshops, and industrial plants. In this blog post, UPIPE, a high performance industrial pipeline systems exporter, will share the fundamental layout principles of aluminum alloy compressed air piping for sale, as well as common layout configurations, etc.
Why Aluminum Alloy Piping for Compressed Air Systems?
Before exploring layout strategies, it is important to understand why aluminum alloy has become a dominant material in compressed air systems.
* Corrosion Resistance: Unlike traditional steel piping, aluminum alloy is not prone to rust, which ensures cleaner air supply and prevents contamination of pneumatic tools.
* Lightweight yet Durable: The reduced weight makes installation faster and less labor-intensive, while maintaining mechanical strength to handle high pressures.
* Smooth Internal Surface: Lower friction losses and reduced pressure drops compared to galvanized steel or PVC systems.
* Modular Connection Systems: Quick-connect fittings simplify reconfiguration, expansion, and repairs.
These properties make aluminum alloy ideal for complex layouts where efficiency and adaptability are paramount.
Fundamental Layout Principles of Aluminum Compressed Air Piping
The efficiency of a compressed air system depends heavily on the piping layout. A poorly designed network can cause excessive pressure drops, uneven air distribution, and increased energy consumption.
1. Pressure Drop Minimization
Pressure loss occurs due to friction between compressed air and the internal pipe walls. To minimize this:
* Use the largest feasible main pipeline diameter.
* Keep piping runs as short and direct as possible.
* Avoid unnecessary bends, fittings, and restrictions.
2. Balanced Air Distribution
A well-planned layout ensures equal pressure at all outlets:
* Consider looped layouts for large facilities.
* Distribute air evenly to avoid overloading one section of the system.
* Provide multiple feed points for high-demand zones.
3. Avoiding Condensate Accumulation
Compressed air contains moisture that can condense inside the pipes:
* Install the main line with a slight slope (about 1–2%) toward drain points.
* Place drip legs at strategic locations.
* Ensure take-off points are positioned at the top of the pipe to avoid water carryover.

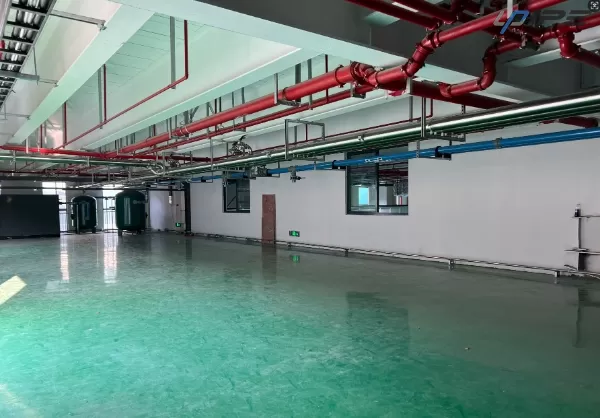

Common Layout Configurations of Aluminum Compressed Air Piping
Different facilities require different layout strategies. The main configurations for aluminum alloy compressed air piping include:
1. Loop System
The loop layout connects the main pipeline in a closed circuit around the facility.
* Advantages: Even air distribution, lower pressure drops, redundancy in case of blockage.
* Applications: Large workshops, automotive plants, and facilities with evenly distributed air demand.
2. Branch System
A single main line runs through the facility, with branch lines extending to workstations.
* Advantages: Simple installation, lower material costs.
* Limitations: Pressure variations between near and far outlets.
3. Grid Layout
A combination of loops and branches that form a network.
* Advantages: Balanced distribution with flexibility for expansion.
* Applications: Complex manufacturing plants with diverse production zones.
Design Considerations for Aluminum Compressed Air Piping
When planning the layout, several factors must be evaluated to ensure optimal performance:
1.Pipe Sizing
* Correct pipe diameter is essential to reduce friction losses.
* Oversized piping increases costs unnecessarily, while undersized piping causes high pressure drops.
* Use flow rate, pressure requirements, and allowable pressure loss to determine the correct size.
2.Installation Location
* Avoid placing pipes near heat sources to prevent expansion and damage.
* Keep piping away from floors where it can be damaged by forklifts or debris.
* Use wall-mounted or overhead installations for safety and accessibility.
3.Fittings and Connections
* Utilize manufacturer-recommended quick-connect fittings to maintain system integrity.
* Minimize the use of elbows, tees, and reducers to limit turbulence.
4.Expansion Capability
* Aluminum alloy piping allows for future modifications without welding or threading.
* Design the layout with potential expansion points in mind.
Installation Best Practices of Compressed Air Line System
Aluminum alloy piping systems are typically easier to install than traditional metal pipes, but attention to detail remains crucial.
1. Plan the Layout Before Installation
Create a scaled diagram showing the exact route, outlet positions, and support structures.
2. Proper Support Spacing
Use pipe supports at regular intervals (typically every 1–2 meters) to prevent sagging and stress on joints.
3. Ensure Airtight Sealing
Even small leaks can lead to significant energy losses over time. Use compatible sealing materials and verify all joints after assembly.
4. Implement Safety Standards
Follow relevant industrial standards (such as ISO 8573 for air quality) and local building codes.
Maintenance and Inspection of Compressed Air Line System
Even with corrosion-resistant aluminum alloy, regular inspection is essential:
* Leak Detection: Use ultrasonic leak detectors to identify and repair leaks promptly.
* Drain Management: Regularly empty drain points to prevent water accumulation.
* Filter Maintenance: Ensure filters at key points are clean to maintain air quality.
By incorporating a preventive maintenance schedule, the lifespan and efficiency of the system are significantly extended.
Energy Efficiency Benefits of Compressed Air Line System
An optimized aluminum alloy compressed air piping layout can lead to substantial energy savings:
* Lower Compressor Load: Reduced pressure drops mean compressors work less to maintain required pressure.
* Improved Equipment Life: Stable pressure reduces wear on pneumatic tools and machinery.
* Sustainability Impact: Less wasted energy translates into a smaller carbon footprint.
Conclusion
The layout of aluminum alloy compressed air piping is a decisive factor in the overall performance of an industrial compressed air system. Through careful design, correct pipe sizing, balanced distribution, and proper installation, facilities can achieve cleaner air, reduced energy consumption, and a more reliable operation. Aluminum alloy' s inherent advantages—lightweight construction, corrosion resistance, and ease of modification—make it the ideal material for both new installations and system upgrades. Ultimately, a well-planned piping network is not just an infrastructure choice but a long-term investment in operational efficiency and sustainability.
