An efficient aluminum air line is not determined by straight pipe sections alone. The connection between the main air line and downstream equipment can have a direct effect on sealing, airflow stability, mechanical strength, and condensate control. Quick drops are positioned at these critical points, where vibration, repeated operation, installation stress, and equipment movement can place additional loads on the connection. A poorly supported outlet may therefore become a weak point even when the main piping is properly designed.
UPIPE aluminum compressed air piping combines reinforced quick drops with secure sealing and flow-directed fittings to address these practical concerns. The design focuses on maintaining a stable connection while allowing compressed air to reach equipment efficiently. By considering the outlet as an important part of the complete air distribution path, an aluminum air line can provide more consistent point-of-use performance and easier installation across industrial facilities.
Quick drops need to withstand more than air pressure. Mechanical forces can develop when piping is connected to equipment, when operators work around outlets, or when vibration is transferred through the connected air network. Stress that is concentrated around a fitting may gradually affect the connection if the structure does not provide adequate reinforcement.
UPIPE quick drops incorporate reinforcement ribs into the body to help reduce the risk of breakage caused by uneven stress. High-strength passive locking components provide additional protection at the connection point. This construction approach supports the mechanical stability of an aluminum air line while keeping the outlet practical for routine installation and maintenance.
Air leakage is one of the most persistent concerns in compressed air distribution. A small leak at a connection can remain unnoticed while continuously reducing the amount of useful air reaching downstream equipment. Leakage can also increase the demand placed on compressed air generation, making connection quality an important consideration when selecting compressed air pipe fittings.
UPIPE quick drops use a multi-surface sealing structure designed to create a more secure connection and reduce leakage risks associated with installation. The sealing approach works together with the mechanical structure rather than relying on a single contact surface. For an aluminum air line for industrial air distribution, this combination helps address both connection integrity and long-term airflow efficiency.
Pressure loss does not occur only in long pipe runs. Every elbow, tee, connector, and point-of-use outlet can influence how compressed air moves through the network. Sharp changes in direction or poorly controlled internal flow can increase resistance and reduce the pressure available to equipment farther along the line.
UPIPE uses flow-directing shapes in tees, elbows, and quick drops to improve the movement of compressed air while supporting structural strength. This approach makes the fittings an active part of airflow management rather than treating them as simple connection accessories. In an aluminum compressed air piping installation, controlling resistance at these transition points can help maintain more stable air delivery and reduce unnecessary pressure loss.
| Quick Drop Design Feature | Practical Benefit |
|---|---|
| Reinforcement ribs | Helps resist stress-related breakage |
| High-strength locking components | Supports connection stability |
| Multi-surface sealing | Helps reduce air leakage |
| Gooseneck structure | Helps limit condensate entering the outlet |
| Flow-directed geometry | Helps reduce unnecessary pressure loss |
| Ready-to-use construction | Simplifies installation work |
Moisture management is another important consideration in compressed air distribution. Condensate can accumulate within an air network and may eventually move toward downstream equipment if the piping arrangement does not provide sufficient protection. At the point of use, this can create additional concerns for pneumatic tools, production equipment, and other air-consuming devices.
UPIPE quick drops incorporate a gooseneck design intended to prevent condensate from flowing downward directly into the connected air outlet. This feature provides an additional layer of equipment protection while keeping the connection practical for industrial use. When combined with properly designed drainage and piping layouts, condensate-conscious outlet design can contribute to cleaner and more dependable compressed air delivery.
The performance of a quick drop also depends on the pipe connected to it. UPIPE uses pure aluminum without recycled material and precisely cuts both pipe ends to maintain clean internal surfaces. The pipes also feature thickened wall construction for added structural durability, creating a stable foundation for the fittings and connections installed throughout the network.
Cleanliness is considered during storage and transportation as well. Pipe packaging incorporates non-woven fabric lining, external plastic sealing, and sealed ends to help prevent external contamination before installation. These details are particularly relevant when buyers are evaluating an aluminum air line for clean compressed air distribution, where maintaining a clean internal flow path is part of the overall piping requirement.
Industrial compressed air networks can contain a large number of outlets, branches, valves, and connection points. Even a small amount of additional preparation at each point can increase the overall installation workload. A practical aluminum air line therefore needs to balance connection security with installation efficiency.
UPIPE quick drops are designed to be ready for use, reducing unnecessary preparation during installation. Larger pipe sizes are also pre-treated with raised rings to help reduce onsite installation time. Together, these details support a more streamlined installation process and make it easier for contractors and maintenance teams to complete connections accurately.

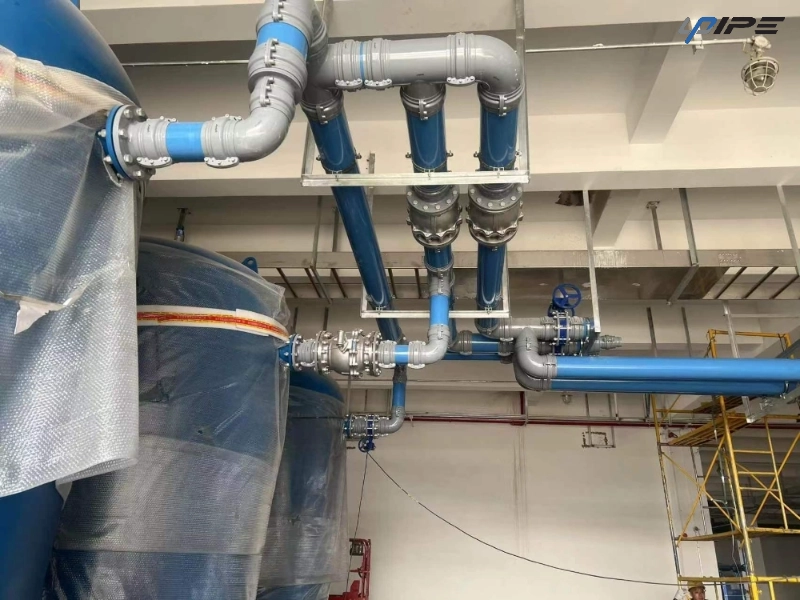

A high-performance air distribution network requires more than good pipe material. Pipe-to-pipe connectors, clamps, seals, valves, tees, elbows, and quick drops must work together to maintain structural stability and airflow performance. If one connection point is poorly supported, the resulting movement or stress can affect other components in the same network.
UPIPE pipe-to-pipe connectors use an integrated molding process designed to provide consistent strength between the connector body and bolt. The pipe clamps incorporate anti-vibration features, helping provide more secure support during operation. These details complement the reinforced quick drop design and create a more balanced approach to mechanical stability throughout the aluminum air line.
When evaluating an aluminum air line for industrial applications, buyers should look beyond pipe material and working pressure alone. Connection structure, sealing performance, condensate control, airflow resistance, installation requirements, and support methods all contribute to the final performance of the network.
A well-designed compressed air piping layout should also consider future maintenance and changes in equipment placement. Ready-to-use quick drops can simplify outlet installation, while reinforced structures and anti-vibration support can help protect connection points during continued operation. Flow-directed fittings and secure sealing address another major concern by helping maintain airflow while limiting unnecessary leakage and pressure loss.
UPIPE brings these considerations together through an aluminum compressed air piping approach that treats the quick drop as an integral part of the air distribution path. Reinforced construction, multi-surface sealing, condensate-conscious geometry, and controlled airflow are combined to address the practical demands found around point-of-use connections.
A quick drop is a point-of-use connection that transfers compressed air from the main distribution pipe to downstream equipment. Its design affects sealing, mechanical stability, airflow, and condensate management.
Reinforcement ribs help distribute mechanical stress around the connection and reduce the risk of breakage caused by uneven loading. High-strength locking components provide additional structural support.
Yes. The internal shape of fittings influences airflow resistance. Flow-directed tees, elbows, and quick drops can help reduce unnecessary pressure loss within an aluminum compressed air piping network.
The gooseneck structure is designed to prevent condensate from flowing downward directly into the connected outlet, helping reduce the risk of moisture reaching downstream equipment.
Important considerations include pipe construction, connection strength, sealing performance, fitting geometry, condensate management, installation efficiency, vibration control, and compatibility between the pipe and its fittings. A complete approach helps create a more stable and maintainable air distribution network.
