You have three main places to get compressed air pipeline design services. Specialized compressed air engineering firms focus on system design and analysis. Equipment manufacturers and distributors pair piping products with engineering support. Full-service mechanical contractors handle design and installation under one roof.
The right choice depends on your project scope, your in-house capabilities, and whether you need design only or design plus installation. A small upgrade may suit a distributor's support team. A complex system often calls for a specialized firm. A plant without maintenance staff may prefer a contractor.
This post explains each provider type. It then walks through the criteria for choosing among them.
There are three main kinds of providers: engineering firms that focus on this work, companies that make or sell the equipment, and mechanical contractors that handle the whole job.
Match the provider to your project: complex systems need expert firms, simple upgrades fit distributors, and plants without maintenance staff gain from contractors.
Check their credentials, like CAGI certification. Also ask for a full design package. It should include pipe sizing, air treatment, and pressure drop calculations.
Make sure the work follows standards like ISO 8573-1. Also ask for written pressure test records and material certificates.
Compare proposals by total cost over time, not just the starting price. Also look at warranty terms and local service support.
Three types of providers serve this market, and each one fits a different kind of project. You will get the best result when you match the provider to your scope, your staff, and your timeline. No single category is best for every job.
Specialized compressed air engineering firms focus on system design and analysis. They model demand, size piping, and specify treatment equipment. They do not usually make pipe or sell hardware. Their value lies in independent engineering judgment. You get drawings, specifications, and a basis for comparing bids. That independence matters when several vendors quote different pipe sizes for the same load.
This group is larger than many buyers expect. According to RevenueBase, a business data provider, there are 454 company matches for compressor design and engineering companies associated with the United States, as of October 2026. That depth means you can usually find a firm with experience in your sector. Fluid-Aire Dynamics, for example, serves a broad industry base:
Automotive
Mining
Chemical and petrochemical
Electronics
Oil and gas
Food and beverage
Agriculture and farm
General manufacturing
Pharmaceutical
Power generation
Woodworking
Aerospace and defense
ADG Concepts is another example. The firm offers compressed air system design services. Ask for references in your industry and samples of past system models. A firm that has sized lines for your process will spot demand spikes that a generalist misses. A specialized firm fits best when your system is complex, when you need an unbiased specification, or when you have in-house crews ready to install to a design.
Equipment manufacturers and distributors pair piping products with engineering support. Atlas Copco supplies AIRnet aluminum and stainless steel piping. The company backs it with engineering support for sizing, layout, and installation. Air Services Company offers piping solutions from Gardner Denver, Transair, and Infinity Pipe Systems. Distributors in this group often bundle product training and warranty support with the design work. Full-service mechanical contractors take a different path. They handle design and installation under one roof, which suits plants without maintenance staff. Contractors fit renovation work well, because they coordinate pipe routes with other trades on site.
Product-based providers fit best when you want a proven piping system and the maker's own application knowledge. The Upipe Aluminum Pipe System is one product option in this category. It uses pure aluminum pipe with no recycled material and a thickened wall design across all models. Pipe-to-pipe connectors use an integrated molding process for equal strength between bolt and body. The sealing rubber comes from imported Thai raw materials. Tees, elbows, and quick drops feature flow-directing shapes that reduce pressure loss. All pipe clamps include anti-vibration features, and a gooseneck design keeps condensate from flowing down into the pipes. Pipes arrive lined with non-woven fabric and sealed at both ends, so the internal surface stays clean before installation.
Many buyers combine categories. You might hire a specialized firm for compressed air pipeline design services and then buy pipe from a manufacturer. Or you might hand the whole job to a contractor. Neither path is wrong. Weigh your in-house skills first, then your budget, then your timeline. The next section covers how to judge the proposals you receive.
Technical expertise decides whether your system performs for decades or wastes energy from day one. A designer who understands demand profiles, pressure drop, and pipe sizing will specify a system that runs efficiently and stays within budget. A generalist may copy a template and miss your peak loads. You should assess credentials, check references, and confirm system modeling capability before you sign a contract. Ask for past projects in your industry. Ask how the firm models peak demand and pressure drop. A firm that cannot explain its sizing method will struggle to defend its design when the system underperforms.
Certifications give you a quick filter for competence. The Certified Compressed Air System Specialist credential, run under the CAGI Personnel Certification Program, demonstrates the knowledge to conduct compressed air system assessments. CAGI Education Foundation training courses teach teams to evaluate systems and apply proven techniques that reduce operating costs and improve productivity, quality, and reliability. The Foundations of Efficient Compressed Air Systems course covers fundamentals for sales and service professionals. Look for these credentials when you compare providers of compressed air pipeline design services:
Certified Compressed Air System Specialist (CAGI Personnel Certification Program)
CAGI Education Foundation (CAC) training courses
Foundations of Efficient Compressed Air Systems course
Safety and quality certifications also matter. Review this table when you screen candidates:
Certification / Accreditation | Description |
|---|---|
ISO 8573-1:2010 Class 0 | Oil-free air quality standard meeting international regulations |
ISO 22000 | Food safety management certification ensuring air is safe for food and beverage contact |
FDA FSMA | Compliance with U.S. food safety regulations for product-contact air |
HACCP | Hazard analysis certification demonstrating food safety control |
OSHA 30 / OSHA 10 | Safety certifications held by service leaders and technicians |
TWIC & MSHA | Specialized safety training qualifications |
Air Academy Training | Factory-certified training for all team members |
Ask for references and confirm the firm's modeling tools. A provider that models your system before quoting will catch demand spikes a template misses.
A complete design package covers pipe sizing, air treatment, thermal expansion, configuration choice, and engineering best practices. Ask for each item in writing. The design process itself follows a clear sequence:
Draw a piping schematic with all pipe lengths, fittings, valves, and bends.
Measure and sum all straight runs in feet.
Add equivalent length for each bend, fitting, or valve (rule of thumb: about 5 ft per bend or tee, or use an equivalent-length table).
Add total straight length and equivalent fitting lengths to get total equivalent length.
Use max CFM and equivalent length with a sizing table or chart to find the recommended pipe diameter.
Good designs keep point-of-use pressure at required levels, commonly 90–100 PSI. A pressure drop greater than about 3 PSI without significant leaks may signal undersized piping. Designers should cap pressure drop between the compressor and the most remote point at about 0.1 bar. Control air velocity at about 6–7 m/s or less for main headers, and never exceed 9 m/s. A closed-loop ring layout delivers uniform supply. Limit pressure drop to about 0.3–0.5 PSI per 100 feet, and note that loop layouts can cut pressure drop by roughly 50% versus straight-run systems. Thermal expansion deserves its own line item. Pipes expand and contract with temperature swings, and the design must account for that movement. Size for future expansion.
A design that ignores your demand profile will not work well, even if the pipe is top quality. Begin by figuring out peak coincident demand. Make a list of every pneumatic tool, cylinder, actuator, and blow-off nozzle. Use a diversity factor, since not all devices run at the same time. Add a 20%–25% capacity buffer for future growth. Next, trace the longest physical run from the compressor outlet to the farthest drop. Distance adds up friction, so this path sets your worst-case pressure loss.
Turn fittings into equivalent straight-pipe length. A 90° elbow in 1-1/4" pipe equals about 4.5 ft, a branch tee about 9 ft, and a full-port ball valve about 1 ft. As a rule of thumb, multiply the measured straight run by 1.5. A 200-ft run becomes a 300-ft effective run. Designers then use the Darcy-Weisbach equation to predict pressure loss and keep distribution main drop at 1%–2% of total line pressure. Ask any provider of compressed air pipeline design services to show this calculation for your layout.
Material choice follows the same logic. Compare the two main options:
Attribute | Stainless Steel | Aluminum |
|---|---|---|
Durability | Most durable; lasts 50 years or longer | Modern systems last 30–50 years or longer |
Corrosion resistance | Highest; suits pharma, labs, clean rooms | Zero corrosion; smooth interior reduces pressure loss |
Weight | Heavy, comparable to iron | About three times lighter than iron |
Installation | Specialized skills required | Easy to install and reconfigure |
Stainless steel fits strict cleanliness standards and oil-free compressor plants. Aluminum fits most general industrial layouts, where light weight and easy reconfiguration cut installation cost.
Performance depends on correct sizing and airflow design. Smooth-walled, correctly sized piping cuts friction loss and pressure drop, which lowers energy use. A looped layout lets air reach any point from two directions, balancing pressure during high demand. Limit elbows and tees, and use swept or directional tees instead of 90° tees.
Leak prevention deserves equal attention. Leaks usually waste 20%–30% of output, and a 4 mm hole costs about $2,005 (or the equivalent in US dollars) per year at 8 bar. Fit drip legs at key points to collect condensate. Add ball valves for sectional isolation and unions for easy disassembly. Route branch takeoffs from the top of the header in a gooseneck shape, so condensate pools in the main for automatic drains. Fix leaks as a routine task, and size the system for future growth so added drops do not overload the mains.

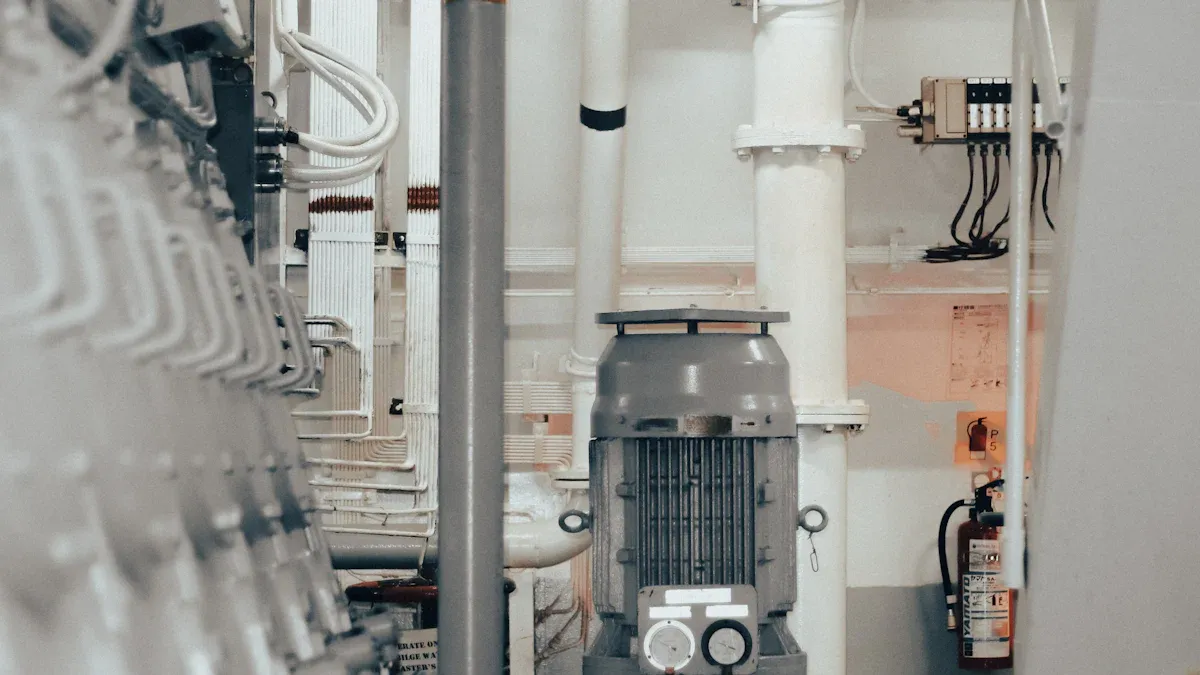

Following the rules protects your people, your product, and your insurance. A compressed air system holds a lot of energy. A badly designed line can burst under pressure. It can also send dirty air into food or drug production. A complete design should cover pipe sizing, air treatment, thermal expansion, and good engineering practices that meet the right codes and standards. Ask your provider to name the codes that apply to your setup and to show where the design meets them.
Paperwork turns a promise into proof. Ask for a package with pressure test records, material certificates, and air quality classification. ISO 8573-1 sets air purity classes for particles, water, and oil. Your design should state the class your process needs. A provider that documents each step gives you a file you can hand to an auditor or insurer without a rush.
Claims about compliance mean little without a track record to back them up. Ask how many installations the provider has finished and whether they serve clients around the world. Hundreds of successful projects in many countries show proven expertise. Then talk with at least three current clients. Ask about responsiveness, installation quality, support after the job, and how any problems were fixed.
A written process is the clearest sign of a reliable partner:
Every connection is pressure-tested, performance-checked, and fully documented before the system starts running. The same team that designed and installed the system also modifies or reconfigures it. This shows the kind of documented, checkable process a client can ask a provider to prove.
Use these checks when you make a short list of providers of compressed air pipeline design services:
Confirm the provider meets recognized quality standards, most importantly ISO 8573-1.
Look at the track record of completed installations and global reach.
Contact customer references and ask how problems were handled.
Request a pilot installation to check pressure drop, installation speed, and component quality against measured performance.
Review compliance paperwork and ask the provider to walk you through each compliance step.
The upfront price alone does not tell you much about the real cost of a compressed air system. Energy usually makes up most of the lifetime bill, and a design with lower pressure drop lowers that bill every month. Installation cost also changes with material and layout. Aluminum systems are light and easy to change, which cuts labor compared with copper and threaded pipe. Compare proposals by total cost of ownership, not the sticker price.
Warranty terms should get a line in your comparison. They vary a lot across the market:
Provider | Warranty Term |
|---|---|
Infinity Pipe Systems | 10-year leak-free warranty |
Fastpipe | 12-month warranty |
Competing aluminum-fitting makers | Longer than 12 months |
Think about warranty length next to local service coverage. A long warranty means little without nearby technicians who can reach the facility in good time and distributors who stock spare fittings.

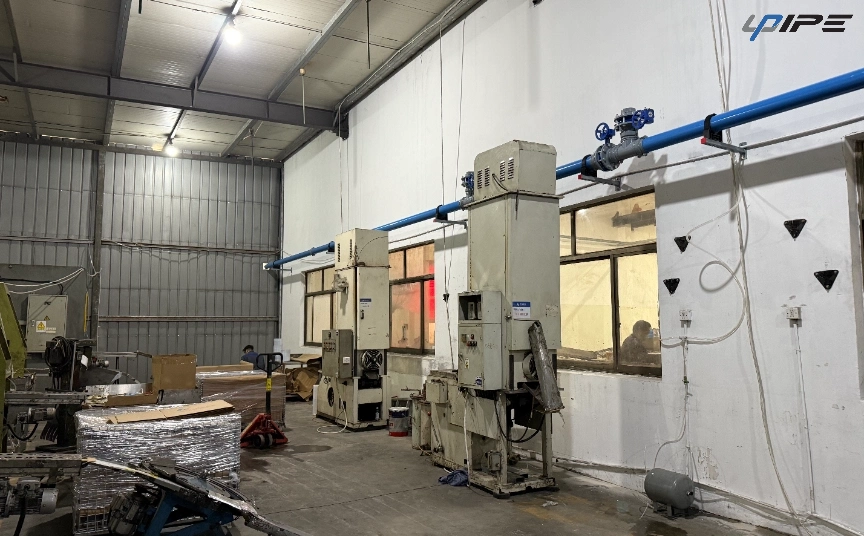

Ask what happens after the system starts running. DIRECTAIR® provides full installation plus ongoing support, which means you do not need in-house experts. Other providers offer similar depth. Atlas Copco runs a global service network with installation, maintenance, optimization, and data analysis. Parker Hannifin gives engineering support from design through installation, plus leak inspection and fix recommendations. Kaeser supports staged expansion so you can grow capacity without stopping operations.
Check three things before you sign with any provider of compressed air pipeline design services:
Warranty terms: confirm what the warranty covers and how long it runs.
Service availability: verify local technicians and stocked spare parts.
Scalability: ask whether the design supports modular expansion with minimal downtime.
Training after installation matters too. A team that can run and maintain the system will get the most efficiency and long life from it. Request a training plan in the proposal, and confirm the provider will support future drops and reconfigurations.
You now have three clear ways to get compressed air pipeline design services. Specialized engineering firms give you independent analysis. Manufacturers and distributors pair proven piping with application support. Mechanical contractors handle design and installation together. Your main criteria stay the same for all three: technical credentials, complete design deliverables, application fit, documented compliance, and total cost of ownership.
Match the provider to your scope. A complex system with in-house installers works best with a specialized firm. A simple upgrade works best with a distributor. A plant without maintenance staff works best with a contractor. Make a short list of two or three providers, then ask for proposals that cover pipe sizing, air treatment, and a loop-style layout. Ask each one for a full needs analysis and clear pricing before you commit.
Pick a full-service mechanical contractor. This provider takes care of design and installation under one roof. You don't have to coordinate separate engineering and installation teams. A distributor also works well when you want a proven piping product with application support.
Ask for pipe sizing, air treatment, thermal expansion, and configuration choice in writing. Request the pressure drop calculation for your longest run. A good package also states the air quality class your process needs under ISO 8573-1.
Match the material to your process. Stainless steel gives the highest corrosion resistance and fits clean rooms and oil-free plants. Aluminum has smooth walls, weighs less, and lowers installation cost. Most general industrial layouts do well with aluminum.
Ask for pressure test records, material certificates, and air quality classification. Then contact at least three current clients. Ask how the provider fixed problems after installation. A documented, checkable process is the clearest sign of a reliable partner.
Energy usually makes up most of the lifetime bill. A design with lower pressure drop lowers that bill every month. Installation cost also changes with material and layout. Compare proposals on lifetime cost, warranty terms, and local service coverage.
